What is
considered when
rating hips and
elbows:
The following
films are provided for your viewing and
for the continued education of my puppy
clients
to make them aware of what
your pup's reading for ratings entails, when taking your Schraderhaus
pup
in to comply with the 12-15
month films and for their
final 24-26 month films.
To
start...
This is what your puppy's
skeletal structure looks like
@ 2
weeks of age.
So you can
see, there is ALOT of
growing to do, and owners need to insure
they make the correct decisions for your
pups by way of feeding, exercise, and
environment
in order to give them
the best possible start during their
growing stages.
Interactive
Hip Xray Films_Samples
Interactive
Canine Elbow Film
Sample
Interactive
Canine Elbow Film
Sample
Interactive
Hip Xray Films_Samples
 |
**
All
Schraderhaus Puppy Owners must watch this video
PRIOR
to having your pups xrayed
for Hip Ratings submitted
to
OFA / or the SV in Germany.
The
importance
of Precise
Positioning
for OFA
Radiographs
Learn the
importance
of Precise
Positioning
for OFA
radiographs.
I can't
stress the
importance
of this
ENOUGH !
|
|
Dog is dysplastic with Severe HD
revealing a very shallow
acetabulum on dog's right side,
with thickening and flattening
of femoral head and neck on this
dogs right side. The dog's
left side shows a severely
discintegratedsocket /femoral
head
& neck with left hip
free floating, with the femoral
head
being completely eroded away from damage..
|
Very badly thickened and
malformed femoral heads and
necks.
True, this is a poor
position for OFA Rating of the
dog, but this
dog is dysplastic
and position would not have
changed this
dog's rating
outcome . |
Morgan Line

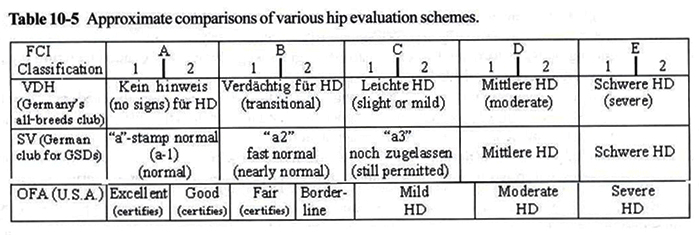

Note the
overlap for OFA Grades into those
ratings from other countries.
ELBOWS

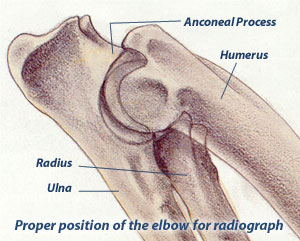

Proper
position for elbow xrays
showing the
names for areas of the elbow.
This
is a radiograph of a normal elbow.
(A) humerus (B) radius (C) ulna
Interactive
Canine Elbow Film
Sample
This film
is of Normal Elbows,
Rated by SV in
Germany
Below;
Elbow Dysplasia with an
Ununited
Anchoneal Process
|
